Network Edge Hardware - Dell R360

Form Factor

1U 19″ Rack mount

Processor

Intel® Xeon® E-2488, 3.2GHz, 8C/16T, 24M Cache, Turbo, HT (95W)

System Memory

Technology

DDR5 ECC UDIMM

Installed Memory

2 x 16GB UDIMM, 5600MT/s ECC (32GB total)

Socket

4 x DDR5 DIMM (128GB max)

Networking

Ethernet Ports

4 x 10GB Copper (Intel X710-T4L), 2 x 10/25GB SFP28 (Intel E810-XXV)

Management Ports

2 x 1GB Copper on-board (Broadcom BCM5720), 1 x iDRAC dedicated port

I/O Interface

LED

System health / System ID

Power Button

1 x Power Button in right control panel

Console

Serial port (rear), iDRAC Direct Micro-USB (front)

USB

Front: 1 x USB 2.0; Rear: 1 x USB 2.0, 1 x USB 3.2 Gen1

Display

VGA

Power Input

Dual, Hot-swap, Power Supply Redundant (1+1)

Storage

HDD/SSD Support

1 x 480GB SATA SSD (Read Intensive, hot-plug); 3.5″ chassis with up to 4 hot-plug drives

Miscellaneous

TPM

TPM2.0

Cooling

System

Standard cooling fans, N+1 redundant

Environmental Parameters

Temperature

Operating: 10-35°C (50-95°F)
Non-Operating: -40-65°C (-40-149°F)

Humidity (RH)

Operating: 8% RH with -12°C (10.4°F) minimum dew point to 80% RH with 21°C (69.8°F) maximum dew point
Non-Operating: 5-95% RH with 27°C (80.6°F) maximum dew point

System Dimensions

(WxDxH)

4 x 3.5″ config: 482.0mm x 534.59mm x 42.8mm (18.98 x 21.05 x 1.69 inches)

Weight

Max 13.23kg (29.17 pounds)

Power

Type / Watts

600W Platinum, Hot-swap Redundant PSUs

Input

600W: AC 100V~240V or 240 HVDC

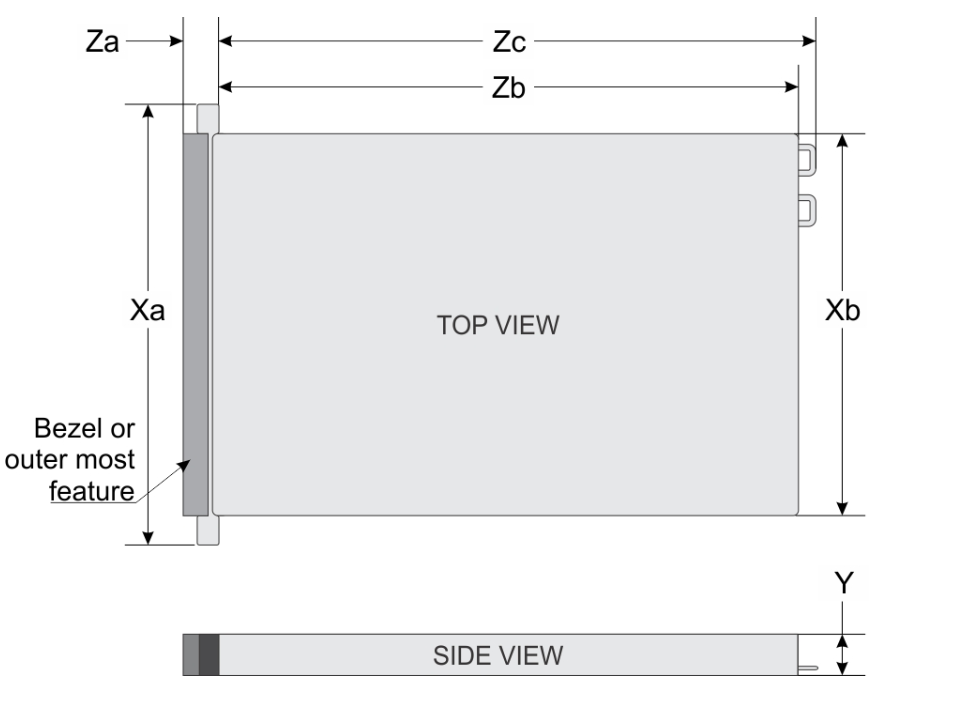

Xa (width with rack ears)

482.0 mm (18.98 in)

482.0 mm (18.98 in)

Xb (chassis width)

434.0 mm (17.09 in)

434.0 mm (17.09 in)

Y (height)

42.8 mm (1.69 in)

42.8 mm (1.69 in)

Za (front, with bezel)

35.6 mm (1.40 in)

35.6 mm (1.40 in)

Za (front, without bezel)

22.0 mm (0.87 in)

22.0 mm (0.87 in)

Zb (ear to rear wall)

483.82 mm (19.05 in)

534.59 mm (21.05 in)

Zc (ear to PSU handle)

512.53 mm (20.18 in)

563.3 mm (22.18 in)

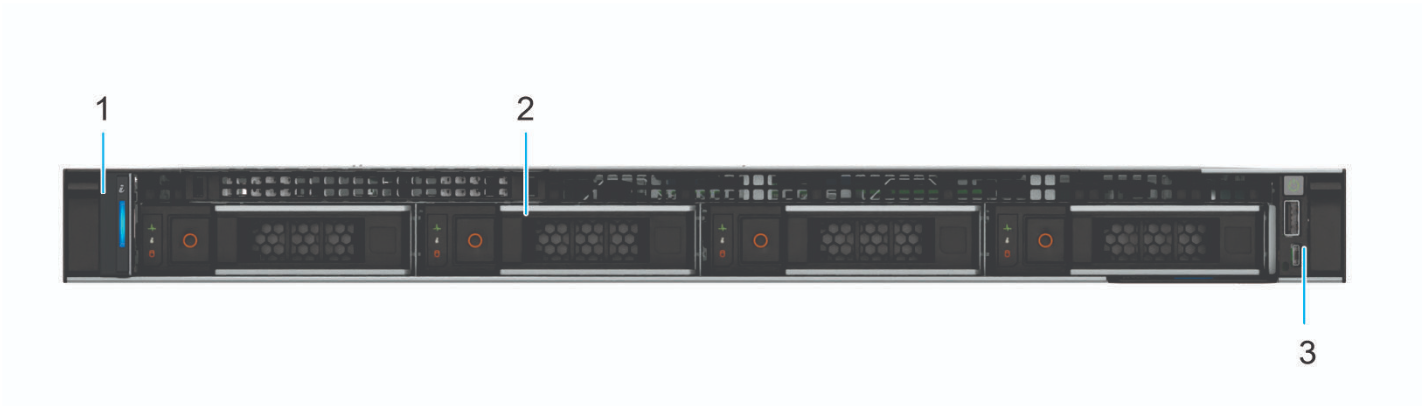

1

Left control panel

N/A

Contains the system health and system ID indicator. For more information, see the System health and system ID indicator codes section.

2

Drives

N/A

Enables you to install up to 4 x 3.5-inch (or 2.5-inch in adapter) or 8 x 2.5-inch SAS/SATA drives, depending on configuration.

3

Right control panel

N/A

Contains the power button, USB 2.0 port and iDRAC Direct Micro-USB port.

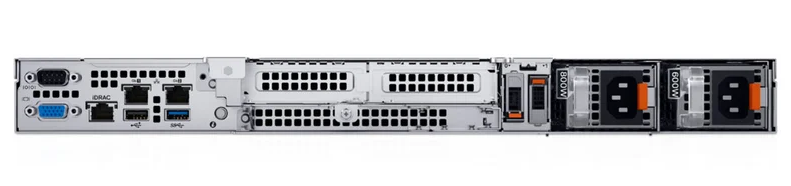

1

Serial port

N/A

Enables you to connect a serial device to the system.

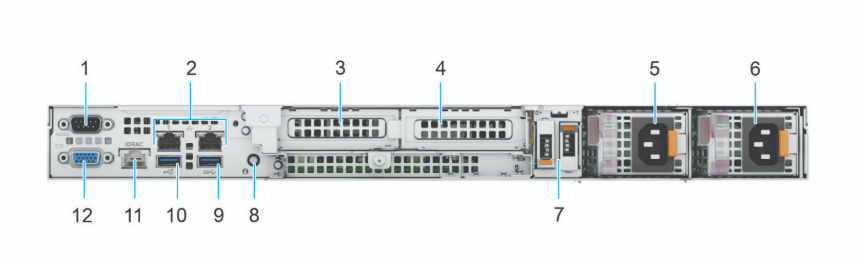

2

On-board NIC ports (2 x 1 GbE LOM)

N/A

The NIC ports integrated on the system board. Port 1 is the local management port (MgmtEthernet1). These ports are not used as data ports.

3

PCIe slot 1 (left)

N/A

Network interface card slot. A NIC in slot 1 is mandatory; port 1 is the default WAN/ZTP port.

4

PCIe slot 2 (right)

N/A

Network interface card slot. Port 1 is the secondary WAN/ZTP port.

5

Power supply unit (PSU 1)

N/A

Indicates the PSU1 or primary PSU.

6

Power supply unit (PSU 2)

N/A

Indicates the PSU2 or secondary PSU.

7

BOSS-N1 slot

N/A

Not used in the deployed configuration (BOSS blank installed).

8

System identification button

N/A

Press the system ID button to locate a particular system within a rack, or to turn the system ID on or off. If the system stops responding during POST, press and hold the button for more than 5 seconds to enter BIOS progress mode. To reset iDRAC, press and hold the button for more than 15 seconds.

9

USB 3.2 Gen1 port

N/A

This port is USB 3.2 Gen1-compliant.

10

USB 2.0 port

N/A

This port is USB 2.0-compliant.

11

Dedicated iDRAC Ethernet port

N/A

It is an RJ45 port. Enables you to remotely access iDRAC.

12

VGA port

N/A

Enables you to connect a display device to the system.

Slot 1, port 1

<Speed>Ethernet1/1

Default WAN/ZTP port

Slot 1, other ports

<Speed>Ethernet1/2 onward

Any function

Slot 2, port 1

<Speed>Ethernet2/1

Secondary WAN/ZTP port

Slot 2, other ports

<Speed>Ethernet2/2 onward

Any function

On-board port 1

MgmtEthernet1

Local management (local web server)

Intel X710-T4L Quad Port 10GbE BASE-T

4 x 10G copper

TenGigabitEthernetN/X

Intel E810-XXV Dual Port 10/25GbE SFP28

2 x 10/25G SFP28

TwentyFiveGigabitEthernetN/X

Intel Ethernet i350 Quad Port 1GbE BASE-T

4 x 1G copper

GigabitEthernetN/X

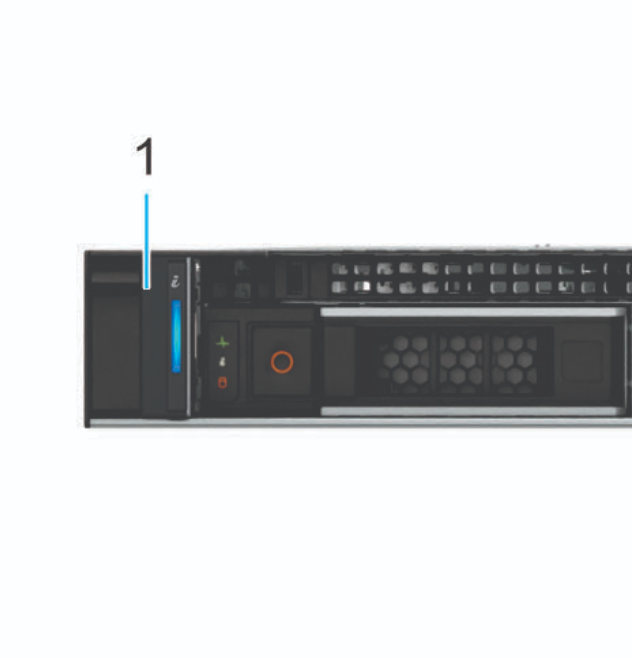

1

System health and system ID indicator

N/A

Indicates system health (see System health and system ID indicator codes chart below).

Solid blue

Indicates that the system is powered on, is healthy, and system ID mode is not active. Press the system health and system ID button to switch to system ID mode.

Blinking blue

Indicates that the system ID mode is active. Press the system health and system ID button to switch to system health mode.

Solid amber

Indicates that the system is in fail-safe mode.

Blinking amber

Indicates that the system is experiencing a fault. Check the System Event Log for specific error messages.

1

Power button

N/A

Indicates if the system is powered on or off. Press the power button to manually power on or off the system. Note: Press the power button to gracefully shut down an ACPI-compliant operating system.

2

USB 2.0-compliant port

N/A

The USB port is 2.0-compliant. This port enables you to connect USB devices to the system.

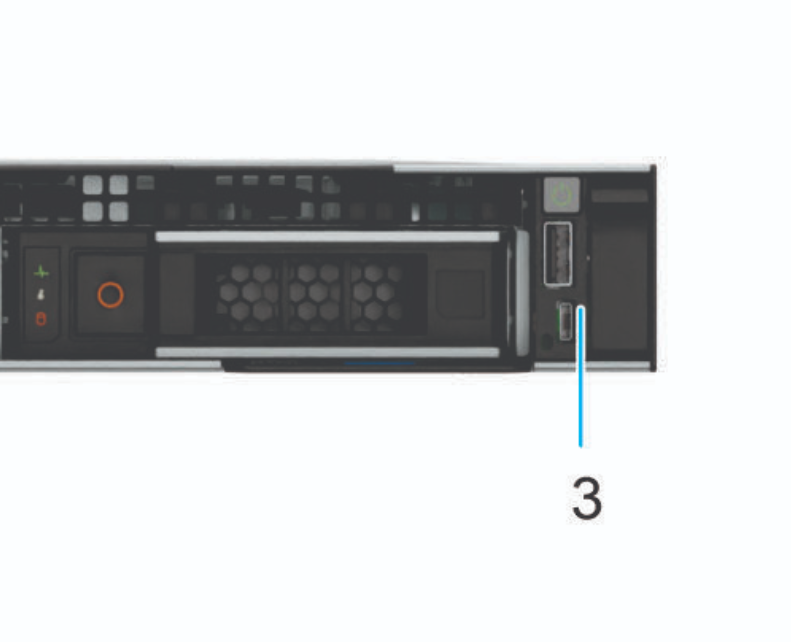

3

iDRAC Direct port (Micro-AB USB)

N/A

The iDRAC Direct (Micro-AB USB) port enables you to access the iDRAC Direct Micro-AB USB features. Note: You can configure iDRAC Direct by using a USB to micro USB (type AB) cable, which you can connect to your laptop or tablet. Cable length should not exceed three feet (0.91 meters). Performance could be affected by cable quality.

4

iDRAC Direct LED indicator

N/A

The iDRAC Direct LED indicator lights up to indicate that the iDRAC Direct port is actively connected to a device. See iDRAC Direct LED indicator codes.
